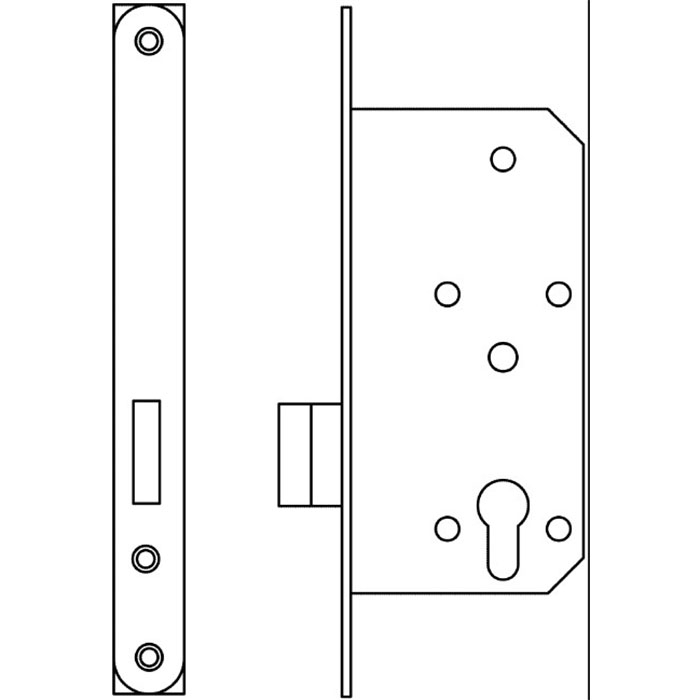

* Dead-bolt lock approved by EN 12209 | ||||||||
* Handy | ||||||||
* Backset distances 55,60,65,70, 80 & 100 mm | ||||||||
* Stainless steel dead bolt SUS 304 | ||||||||
* Faceplate round or square, 20 or 24 mm | ||||||||
* Crossing holes for the rose | ||||||||
* 15 mm long cam profile cylinder, with three keys | ||||||||
* Stainless steel strike | ||||||||
* Without rose | ||||||||
* Deduct €1,50 if the cylinder is not required | ||||||||
* Deduct €0,60 if the strike is not required |
reference | function | finish | backset | turns | follower | |||||
E9612-55 | Dead lock | S. S. | 55 | 1 | x | |||||
E9622-55 | Dead lock | S. S. | 55 | 2 | x | |||||
E9612-60 | Dead lock | S. S. | 60 | 1 | x | |||||
E9622-60 | Dead lock | S. S. | 60 | 2 | x | |||||
E9612-65 | Dead lock | S. S. | 65 | 1 | x | |||||
E9622-65 | Dead lock | S. S. | 65 | 2 | x | |||||
E9612-70 | Dead lock | S. S. | 70 | 1 | x | |||||
E9622-70 | Dead lock | S. S. | 70 | 2 | x | |||||
E9612-80 | Dead lock | S. S. | 80 | 1 | x | |||||
E9622-80 | Dead lock | S. S. | 80 | 2 | x | |||||
E9612-100 | Dead lock | S. S. | 100 | 1 | x | |||||
E9622-100 | Dead lock | S. S. | 100 | 2 | x |
