| * Entrance lock approved by EN 12209 | ||||
| * Handy | ||||

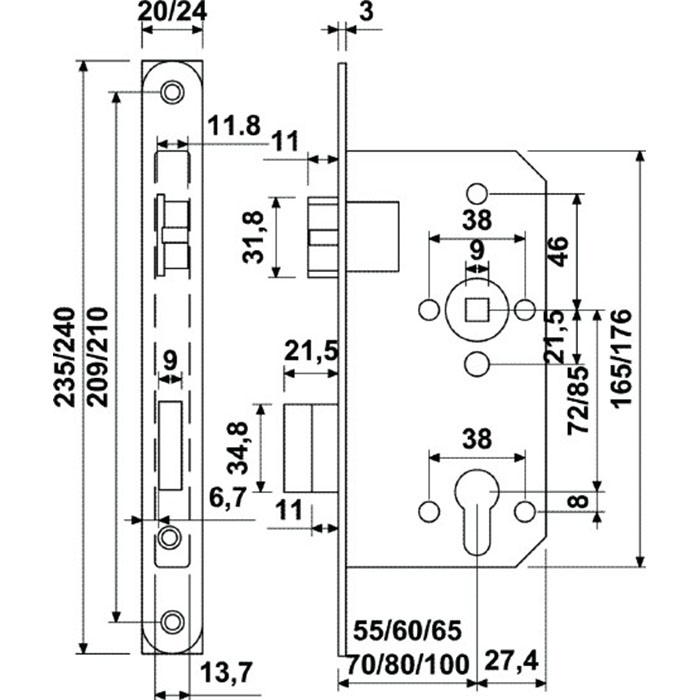

| * Distance between center to center: 72 or 85 mm | ||||
| * Backset distances 55,60,65,70, 80 & 100 mm | ||||
| * Stainless steel silent latch and follower SUS 304 | ||||
| * Faceplate round or square, 20 or 24 mm | ||||
| * Crossing holes for the rose | ||||
| * 15 mm long cam profile cylinder, with three keys | ||||
| * Stainless steel strike | ||||
| * Without rose | ||||
| * Deduct €1,50 if the cylinder is not required | ||||
| * Deduct €0,60 if the strike is not required |
| reference | function | finish | backset | turns | follower | |
| E9510-55 | Entrance | S. S. | 55 | 1 | 8 | |
| E9520-55 | Entrance | S. S. | 55 | 2 | 8 | |
| E9510-60 | Entrance | S. S. | 60 | 1 | 8 | |
| E9520-60 | Entrance | S. S. | 60 | 2 | 8 | |
| E9510-65 | Entrance | S. S. | 65 | 1 | 8 | |
| E9520-65 | Entrance | S. S. | 65 | 2 | 8 | |
| E9510-70 | Entrance | S. S. | 70 | 1 | 8 | |
| E9520-70 | Entrance | S. S. | 70 | 2 | 8 | |
| E9510-80 | Entrance | S. S. | 80 | 1 | 8 | |
| E9520-80 | Entrance | S. S. | 80 | 2 | 8 | |
| E9510-100 | Entrance | S. S. | 100 | 1 | 8 | |
| E9520-100 | Entrance | S. S. | 100 | 2 | 8 | |
